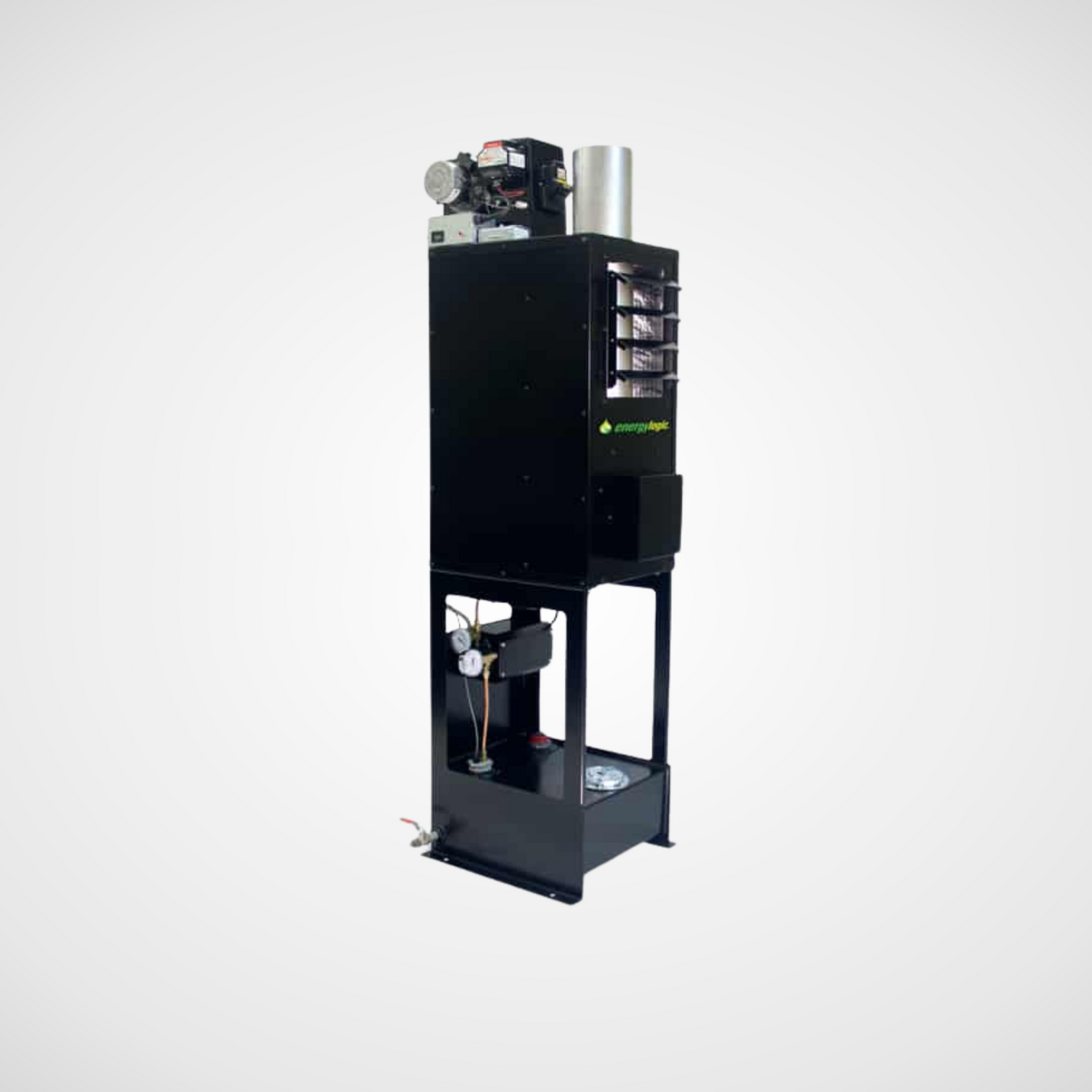

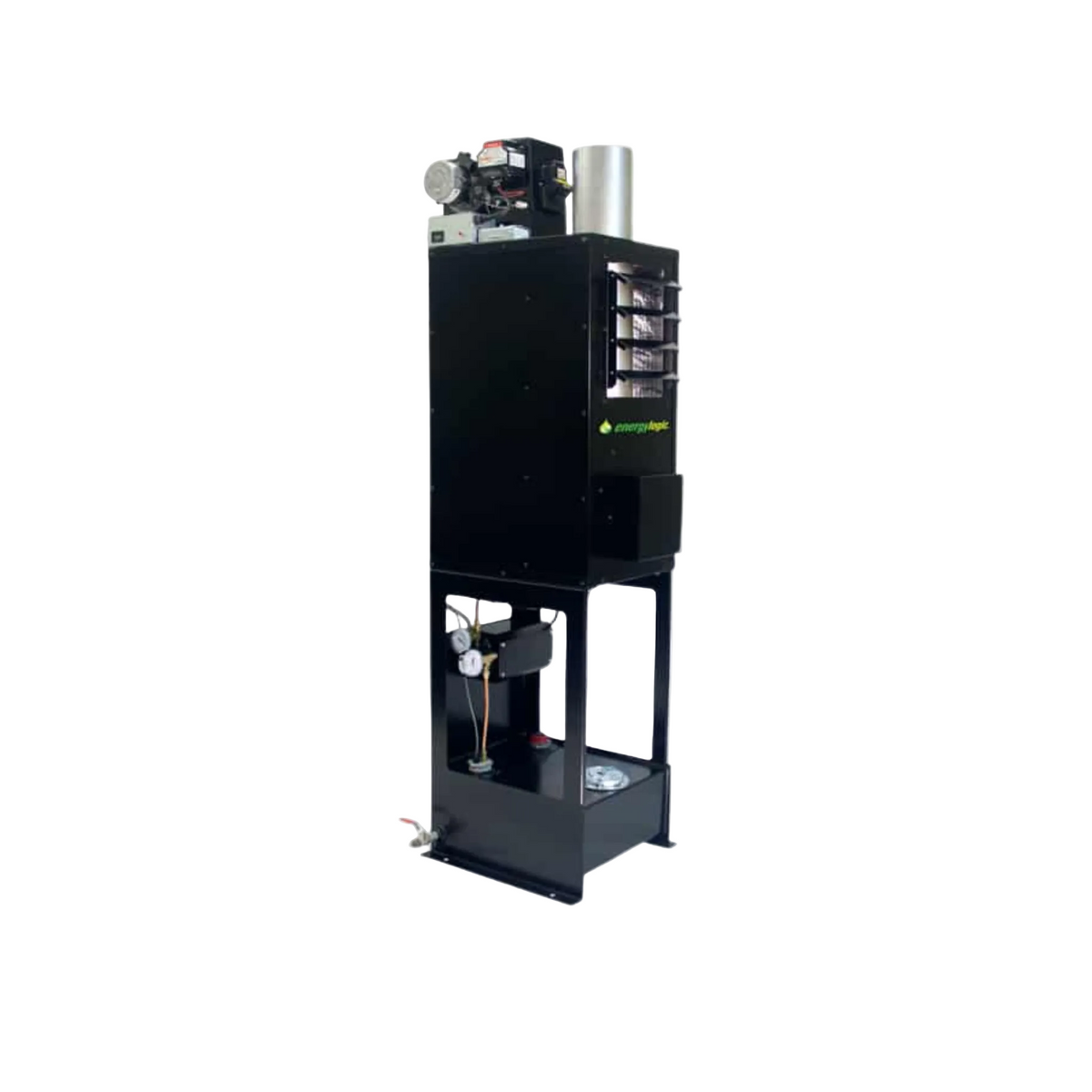

Tee and draft control damper, air compressor, metering pump, draft manometer, hour meter, tank gauge, low fuel cutoff with indicator light, programmable thermostat, cleanable oil strainer in fill port and on pickup tube, flue kit.
-
Fuel Flow Rate: 0.54 gallon/hour (2.0 L/hour)
-
BTU: 75,000 BTU / hour (21.98 kW/hour)
-
Heat Rise over Input Air: 100 F (250 F max outlet temp)
-
Fuel Flow Rate: 0.54 gallon/hour (2.0 L/hour)
-
BTU: 75,000 BTU / hour (21.98 kW/hour)
-
Heat Rise over Input Air: 100 F (250 F max outlet temp)
-
Air Flow: 500 CFM
-
Warm Outlet Dimensions: 10 x 12.5 (no ductwork allowed)
-
Exhaust Flue Diameter: 6 (15cm)
-
Unit Dimensions: 75 H x 21 W x 26L
-
Unit Weight: 210 lbs
-
Tank Storage: 10 gallons
-
Shipping Dimensions: 84 H x 36 W x 36 W
-
Shipping Weight: 320 lbs
-
Approved Fuels: Used crankcase oils, ATF, No. 2 fuel oil
-
Electrical Requirements: 115 VAC 60Hz, 8 amps.Connect to 10 amp circuit breaker: (15 amp max)
-
Regulation and Certification: UL Listed – U.S. and Canada
-
Warranty: 1 year or 1500 hours*
-
Area Coverage: Heats ups to 1750 sq. ft.
-
Mounting: Bolts to non-combustible flooring
-
Flue: Exhaust through 6-Inch, Class A flue
|

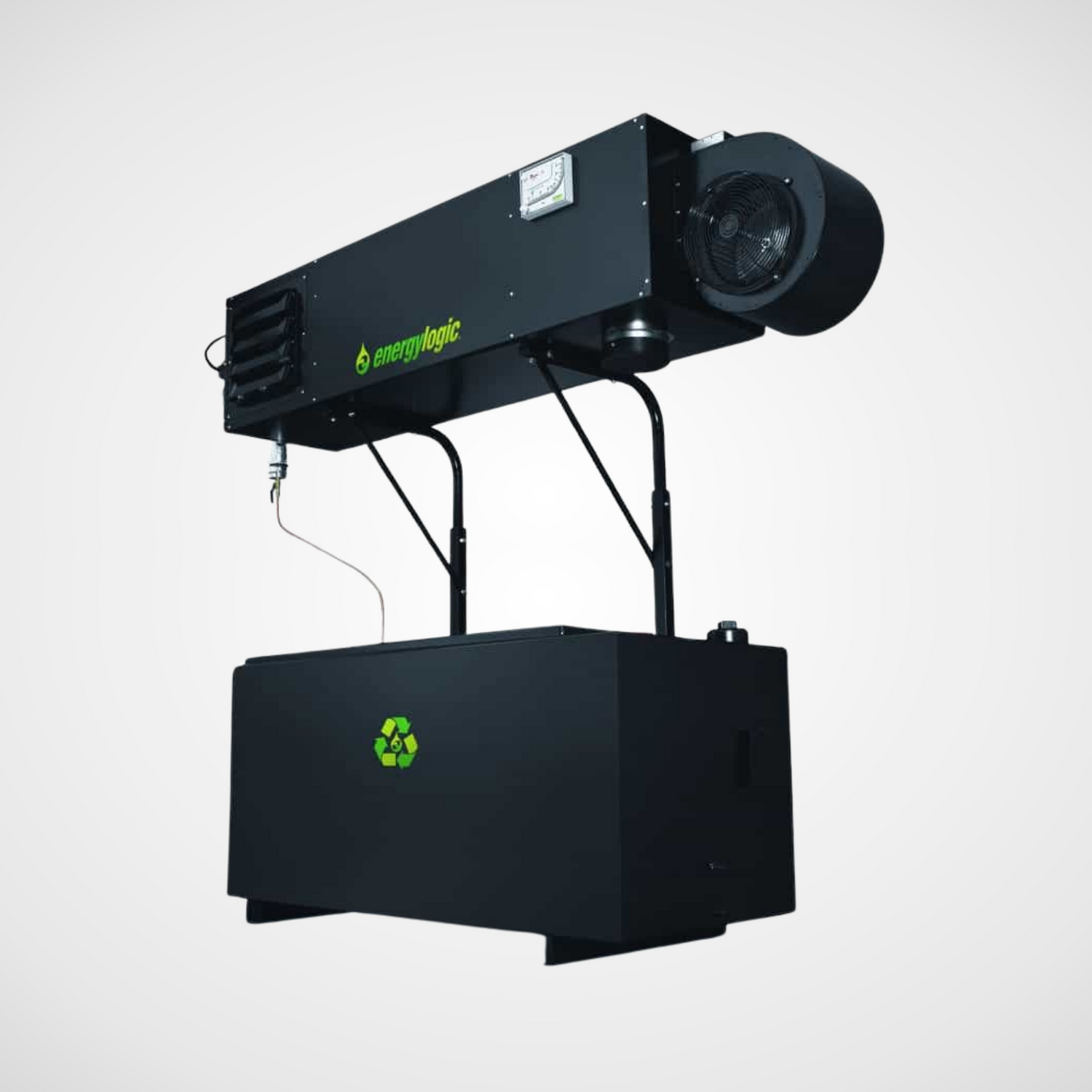

Stainless steel heat exchanger, digital hour eter, accutemp preheater, integrated air compressor, side suction metering fuel pump, flame retention head, swing away burner, fuel gauge, elevated fuel pick up, drain valve.
-
Fuel Flow Rate: 2.5 gal/hr (9.4 L/hr)
-
BTU’s: 350,000 BTU/hour (102 kW/hour)
-
Heat Rise Over Input Air: 100-120F (37.8 48.9C)
-
Fuel Flow Rate: 2.5 gal/hr (9.4 L/hr)
-
BTU’s: 350,000 BTU/hour (102 kW/hour)
-
Heat Rise Over Input Air: 100-120F (37.8 48.9C)
-
Air Flow: 2600 cfm (74cu. m/min)
-
Warm Air Outlet Dimensions: 15 W x 15 H (38cm W x 38cm H)
-
Exhaust Flue Diameter: 8 (20cm available)
-
Furnace Dimensions: 22 H x 22 W x 117 L (56cm H x 56cm W x 297cm L)
-
Furnace Weight: 415 lbs (188 kg)
-
Approved Fuels: Used crankcase oils, ATF, No. 2 fuel oil, up to 90 weight gear oil and diesel fuel
-
Electrical Requirement: 115 VAC 60Hz, 25 amps maximum, dedicated circuit
-
Regulation and Certification: EPA approved, UL-Listed – U.S. and Canada
-
Shipping Weight: 790 lbs (358.34 kg)
-
Electrical Requirements: 115 VAC 60Hz, 25 amps, maximum dedicated circuit
-
Regulation and Certification: EPA-approved, UL-listed system, ASME-certified vessel, Canadian Registration (CRN) available in approved provinces for waste oil heating
|
Stainless steel heat exchanger, digital hour eter, accutemp preheater, integrated air compressor, side suction metering fuel pump, flame retention head, swing away burner, fuel gauge, elevated fuel pick up, drain valve.
-
Fuel Flow Rate: 1.4 gal/hr (5.3 L/hr)
-
BTU’s: 200,000 BTU/hour (58.3 kW/hour)
-
Heat Rise Over Input Air: 100 120F (37.8 48.9C)
-
Fuel Flow Rate: 1.4 gal/hr (5.3 L/hr)
-
BTU’s: 200,000 BTU/hour (58.3 kW/hour)
-
Heat Rise Over Input Air: 100 120F (37.8 48.9C)
-
Air Flow: 1500 cfm (42cu. m/min)
-
Warm Air Outlet Dimensions: 15 W x 15H (38cm W x 38cm H)
-
Exhaust Flue Diameter: 6 or 8 (15cm or 20cm)
-
Furnace Dimensions: 18 H x 18 W x 103 L (46cm H x 46cm W x 262cm L)
-
Furnace Weight: 315 lbs (142 kg)
-
Approved Fuels: Used crankcase oils, ATF, No. 2 fuel oil, up to 90 weight gear oil and diesel fuel
-
Electrical Requirement: 115 VAC 60Hz, 25 amps maximum, dedicated circuit
-
Regulation and Certification: EPA approved, UL-Listed – U.S. and Canada
|
Stainless steel heat exchanger, digital hour eter, accutemp preheater, integrated air compressor, side suction metering fuel pump, flame retention head, swing away burner, fuel gauge, elevated fuel pick up, drain valve.
-
Fuel Flow Rate: 1.0 gal/hr (3.8 L/hr)
-
BTU’s: 140,000 BTU/hour (41.6 kW/hour)
-
Heat Rise Over Input Air: 100 120F (37.8 48.9C)
-
Fuel Flow Rate: 1.0 gal/hr (3.8 L/hr)
-
BTU’s: 140,000 BTU/hour (41.6 kW/hour)
-
Heat Rise Over Input Air: 100 120F (37.8 48.9C)
-
Air Flow: 1000 cfm (28cu. m/min)
-
Warm Air Outlet Dimensions: 15 W x 15 H (38cm W x 38cm H)
-
Exhaust Flue Diameter: 6 or 8 (15cm or 20cm)
-
Furnace Dimensions: 18 H x 18 W x 92 L (46cm H x 46cm W x 234cm L)
-
Furnace Weight: 295 lbs (132 kg)
-
Approved Fuels: Used crankcase oils, ATF, No. 2 fuel oil, up to 90 weight gear oil and diesel fuel
-
Electrical Requirement: 115 VAC 60Hz, 25 amps maximum, dedicated circuit
-
Regulation and Certification: EPA approved, UL-Listed – U.S. and Canada
|
